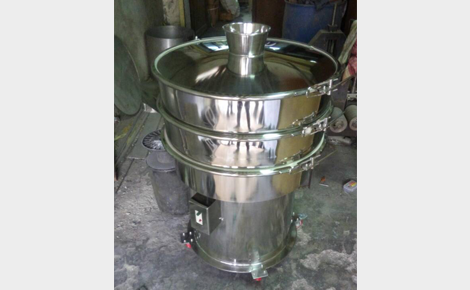

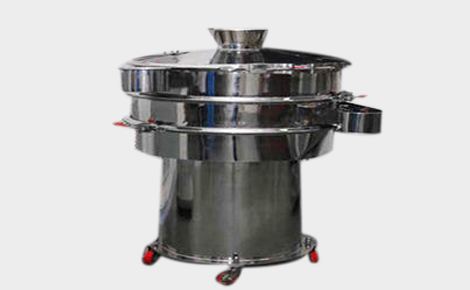

Vibro Sifter

Silent Features

  •   Portable & Compact Design Requires Less Floor Space.
  •   Noiseless, Maintenance Free Efficient Equipment For Sieving & Grading Application.
  •   Available In Various Models Providing Screening Diameter Of 12", 20", 30", 36" & 48".
  •   Less Power Requirement Compare To Conventional Sieving Machine, Leads To Lower Energy Consumption.
  •   Cgmp Construction With Ss 316 Contact Parts.
  •   Easy Dismantling And Cleaning Facility For Contact Parts.
  •   Wide Range Of Screen Sizes 4# To 200# Sizes.
  •   Double & Triple Deck Options Available On Demand.

Technical Specifications

Product Description
Size 12" / 20" / 30" / 36" / 48"
Capacity Up To 400 Kgs. / Hr. Depending Upon Size.
Model Cgmp Model
Contact Parts Ss 316 ( Ss 316 L Upon Demand)
Noncontact Parts Ss 304 Or Cladded With Ss 304
Overall Dimensions 30" - 900 X 900 X 1260 Mm
Power Requirement 3ph/415vac/50hz
Drive Motor Special Vibratory Motor, Non Flame Proof
Drive Motor Hp 12" - 0.25 Hp
20" & 30" - 0.5 Hp
36" & 48" - 1.0 Hp
Starter Dol Starter Shall Be Provided
Finish - Contact Parts 220 Grit Mirror Polish
Finish - Noncontact Parts 150 Grit Mat Finish
Wheels 03 Nos. Pu Wheels With Ss Bracket Shall Be Provided For Easy Mobility.
Gaskets All Rubber Gaskets Shall Be Of Food Grade Neoprene Rubber. Silicon Gaskets Shall Be Provided On Demand.
